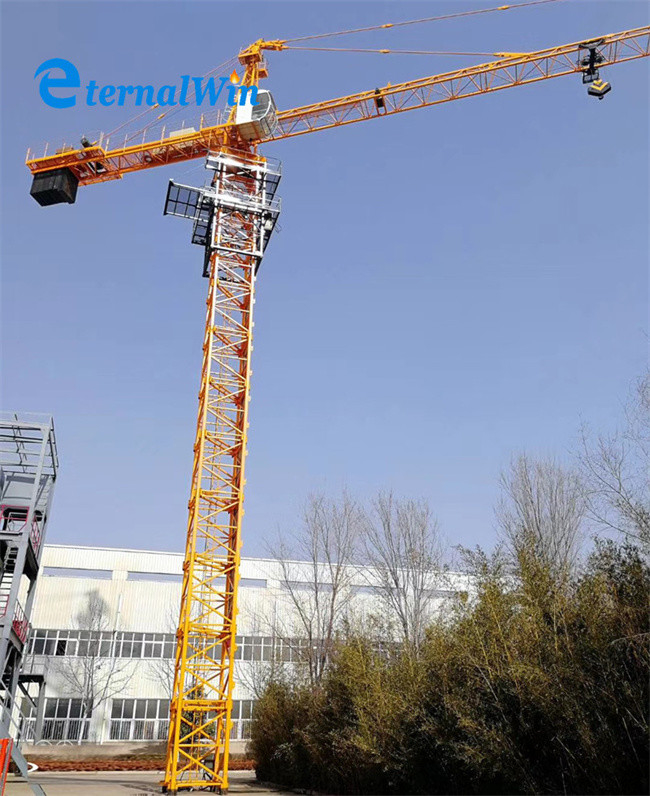

380V 50Hz 3ton 6ton Hammerhead Tower Crane Manufacturer
Tower crane is a fully slewing jib crane with a tower-like structure. It is a common means of transportation in large civil engineering construction sites. It can move construction materials and construction machinery up and down in a crisscross direction. The task of moving objects can be completed quickly. One end of the tower crane is used to lift objects, the middle is a control cabin, and the other end is balanced with a giant concrete block. Tower cranes are usually fixed in the center of a building so that objects can be moved to different locations and heights.
Tower cranes are a modern form of balanced cranes that consist of the same basic components. Tower cranes are fixed to a concrete slab (sometimes attached to the side of the structure) and usually provide the best combination of height and lifting capacity for the construction of high-rise buildings. The base is then connected to the mast, which gives the crane height. In addition, the mast is connected to a slewing unit (gear and motor) that allows the crane to rotate. There are three main parts on top of the slewing device: the working boom, the jib, and the cab. The working boom is the part of the crane that carries the load. The jib carries a counterweight, usually a concrete block. The tower crane can be controlled by the cab or a wireless remote control. The cab is usually located on top of a tower connected to a turntable and can be mounted on a boom. The lifting hook is operated by the crane operator using an electric motor. The hook is located on a winch on a long horizontal arm and is used to lift construction materials.
The optimal location of the tower crane on the construction site has a significant impact on the material transportation costs of the project.
The performance & technical specification is advanced in China, has reached the international advanced level.
We have more than 30 years production history and more than 10 years of overseas business experiance. We can supply other capacity tower crane from 1t to 20t.
Eternalwin brand tower cranes have exported to many countries, such as USA, Germany, Brazil, UK, Bangladesh, Philippines, Sri Lanka, Vietnam, Maldives, Malaysia, Oman, Saudi Arabia, Sudan, Kenya, Guinea, Georgia, Indonesia, Romania, Bulgaria, Armenia, South America, etc.
We have many models and OEM services are available, welcome to contact us for crane designs and quotations!
Safety Feature for Construction Electric Tower Crane:
| 1. |
Torque Limiter |
it will warns when lifting weights reach to 90% of rated lifting torque.
When reach to 110% of the rated lifting torque, it will limit rising upwards and trolley. |
| 2. |
Weight Limiter |
Control the maximum lifting capacity.
Lifting weight reach to 40% of the rated capacity, limit high-speed lifting;
Lifting weight reach to 110% of the rated capacity, limit the lifting up |
| 3. |
Height Limiter |
Control the lowest and highest extreme position of lifting hook |
| 4. |
Slewing Limiter |
Control the extreme turns number of turn left and right |
| 5. |
Amplitude Limiter |
Control trolley limit position of inward and outward |
| 6. |
Overload Protection |
If the material is over the capacity, the crane will give a sharp warning for protection itself |
| 7. |
Emergency Brake |
If the operation staff encounter some emergency situation, we could start the emergency brake system to protection the related treasure |
| 8. |
Control Method |
Cabin control or remote control to avoid any injury to the operation staff |
| 9. |
Main Lifting Motor |
With thermal protection and currency protection |
