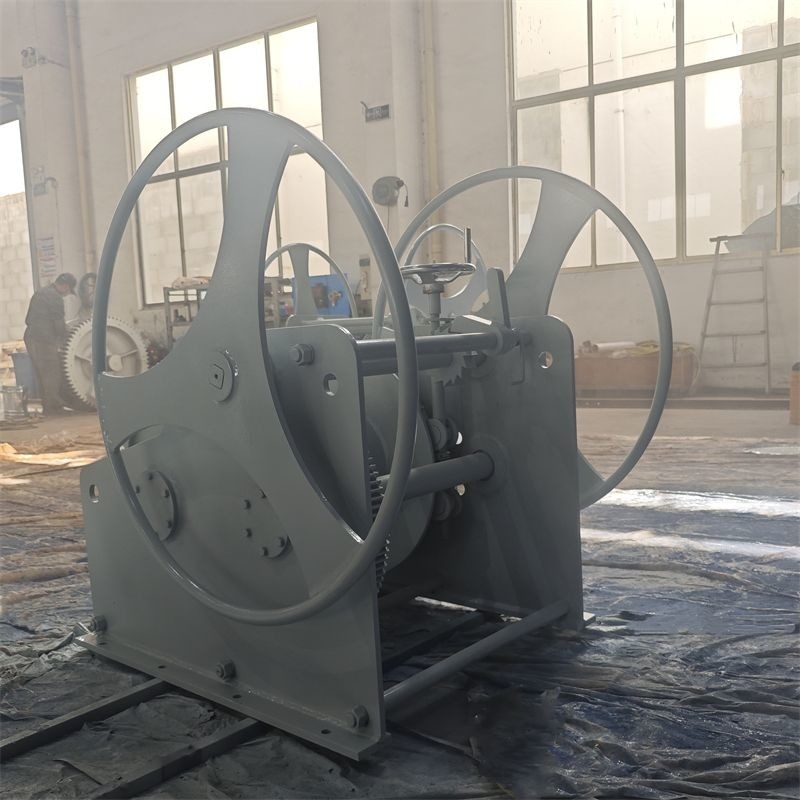

Light Duty Boat Worm Drive Hand Manual Winch With Automatic Brake

Light Duty Boat Use Worm Drive Hand Manual Winch With Automatic Brake

This winch contains frame, drum, and two stage gears, hand wheel, pawl and ratchet. The rope direction is from the down side of drum.
When run this winch, rotate the hand wheel or operate the handle of reinforcing bar. And during the operation, the hand wheel can be used to pull in or pay out rope, when pull in rope, rotate the hand wheel, two pawls don’t affect the running of winch, in this direction, the pawls and ratchets can’t contact well and don’t have the function of forbid reverse rotation, just when stop the operation, the pawls and ratchets forbid reverse rotation. When pay out rope, release the pawl inside of the winch, the drum can be released freely, until the drum stop absolutely, and close relevant pawl.

Attention please: When paying out rope, please release the pawl inside of the winch, to avoiding damage of winch.
The reinforcing bar close to hand wheel can be used to pull in rope, just need to flip the handle which fixed a pawl, the pawl drive the ratchet rotating, to realize the function of pull in rope.

Maintenance:

1.Check whether the wire rope is ok or not.

2.Check all connecting bolt, and make sure they are not loose, the grease is enough.

3.Check whether there are any obstacles around.

4.Inject ZG-3(GB491-87)Calcium grease regularly at every lubrication point.

Specification:

FAQ:

1. What after-sale service do you provide?
We have professional sales team and technical team for all customer. We can serve 24 hours a day for you.

2. What payment methods do you support?
We have many kinds of payment for your reference ,such as Western Union, Paypal, L/C, T/T and so on.

3. How to delivery the goods?
We often shipment goods by sea,which is cheaper than by air. It depends on your specific requirement.

4. What is your warranty service about machine?
Our machine has one year warranty time, and our engineering team available for oversea service with winch installation, inspection and commissioning.

5. What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.

6.Why should I choose your products?
We can provide high quality and low price products for you.
