1 Ton 3 Ton 5 Ton Spider Crane Mini Crawler Mobile Crane mini crawler crane With Telescopic Boom
Mini Spider Crane is commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment. It can be used in installing glass curtain wall, petrochemical pipes, railway construction, machine inspection and maintenance in workshop, electric power construction or municipal construction. Its application in Shanghai world expo is the best description of our quality and reputation.
| Model |
EW 5.0 |
| Specification |
5t |
| Maximum Working Radius |
14m×0.5t |
| Maximum Ground Lifting Height |
16.8m |
| Maximum Under Ground Lifting Height |
18.5m |
| Winch Device |
Hook Speed |
12m/min (4 ropes) |
| Rope diameter |
Φ11mm×80m |
Telescopic system |
Boom Type |
5 section boom, hexagonal structure, two sections can be extended independently |
| Length of telescopic boom |
4.7-16.5m |
| Boom Length/Time |
12.3m/54sec |
| Up and Downs |
Boom Angle/Time |
0~75°/ 13sec |
| Slew System |
Slew Angle/Time |
360° continuous/38 sec |
Outrigger |
Outrigger Active Form |
Manual spin out + oil pressure automatic
support (two section outrigger) |
| Maximum Extended Dimensions |
7800mm x 3600mm |
Traction system |
Walking Way |
Hydraulic motor to drive |
| Walking Speed |
0-2.5km/h |
| Traction device |
Track synthetic rubber |
| Grade Ability |
20° (36%) |
| Engine |
Manufacturer |
YUNNEI |
| |
Type/discharge |
490 |
| |
Starting Method |
Electric starting |
| |
Starting performance |
-5°C~40°C |
| |
Fuel/volume |
Diesel/8L |
| |
Battery capacity |
12V 45AH |
| |
Discharge |
|
| Operating system |
Operation type (Boom/outrigger) |
Manual operation, manual walking |
| Operating characteristics |
Manual operation,remote control |
| Dimension |
Length x Width x Height |
4750×1500×2200(mm) |
| Weight |
Vehicle Weight |
6500kg |
| Effective lifting height |
16.5m |
|
Detailed Photos

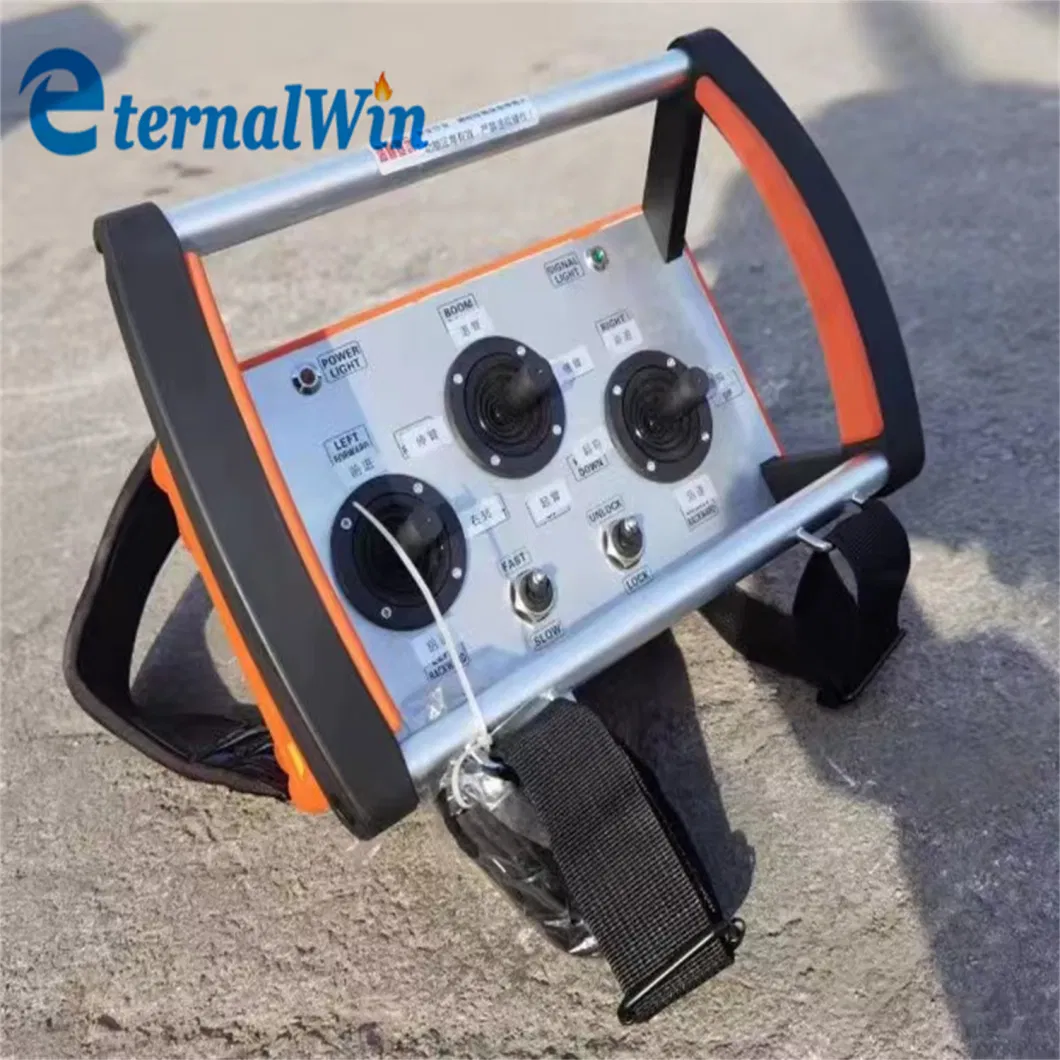

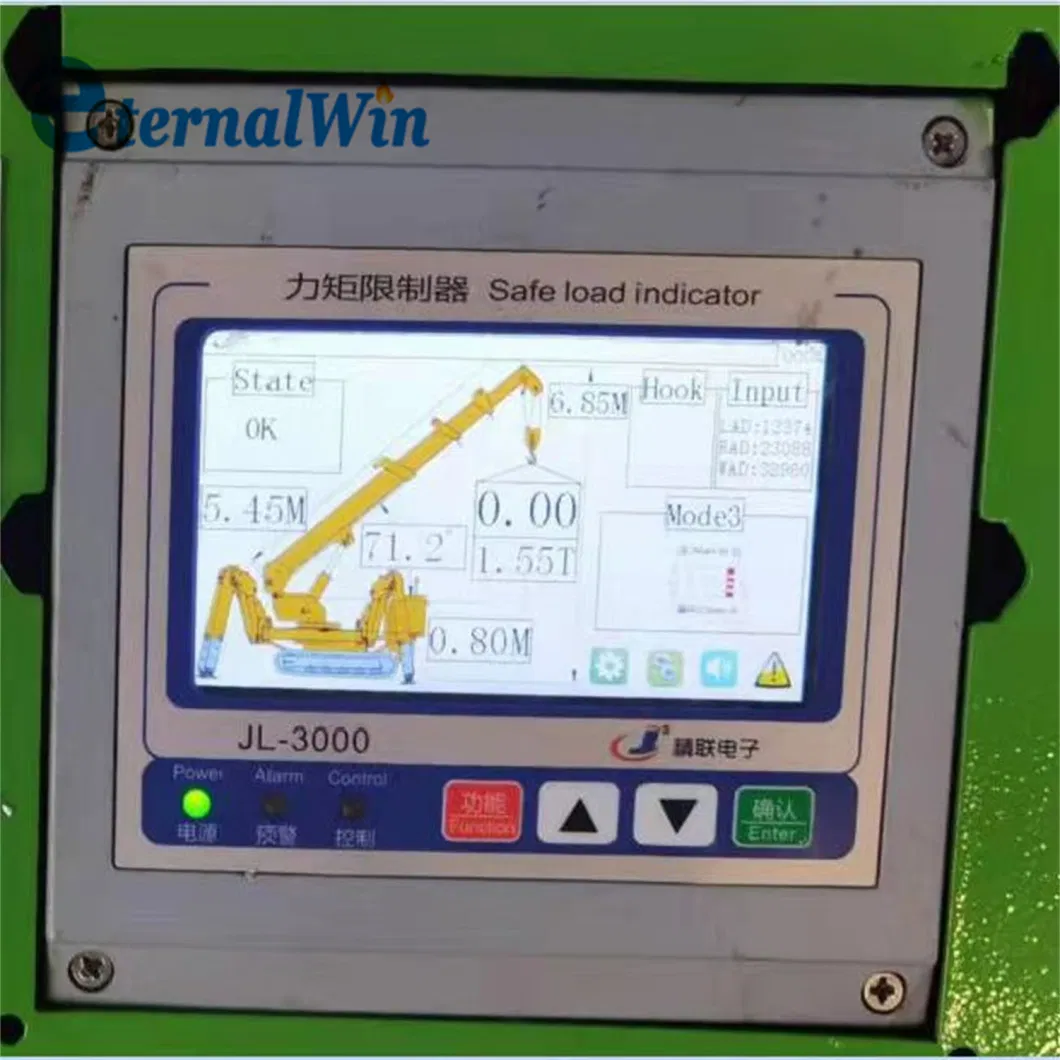

Moment limiter Remote Control

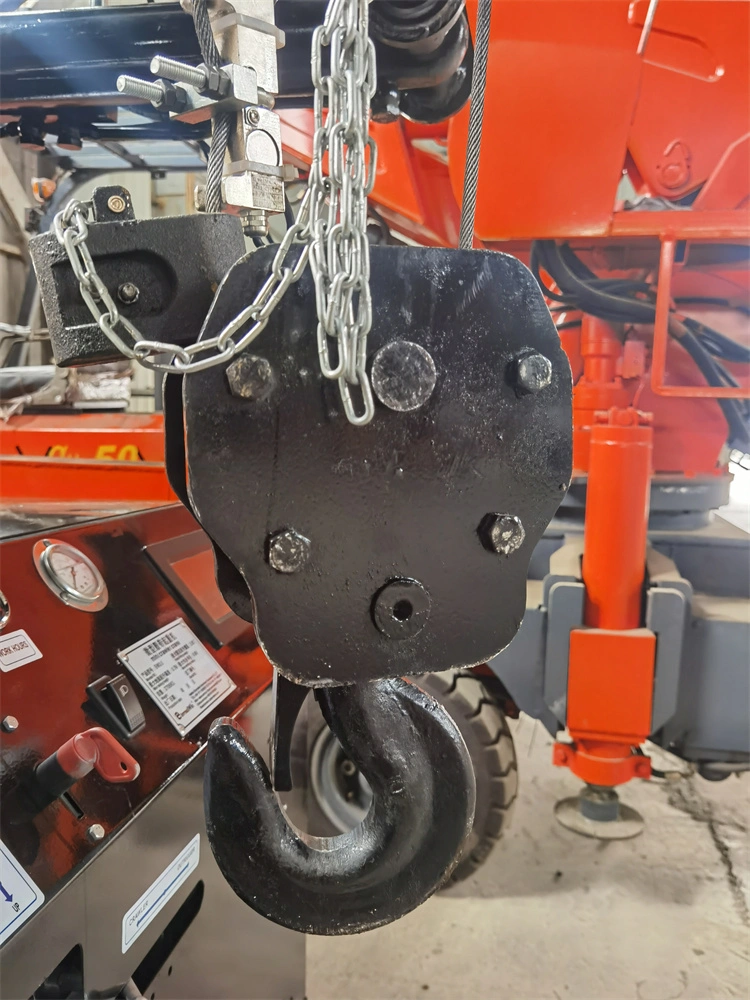

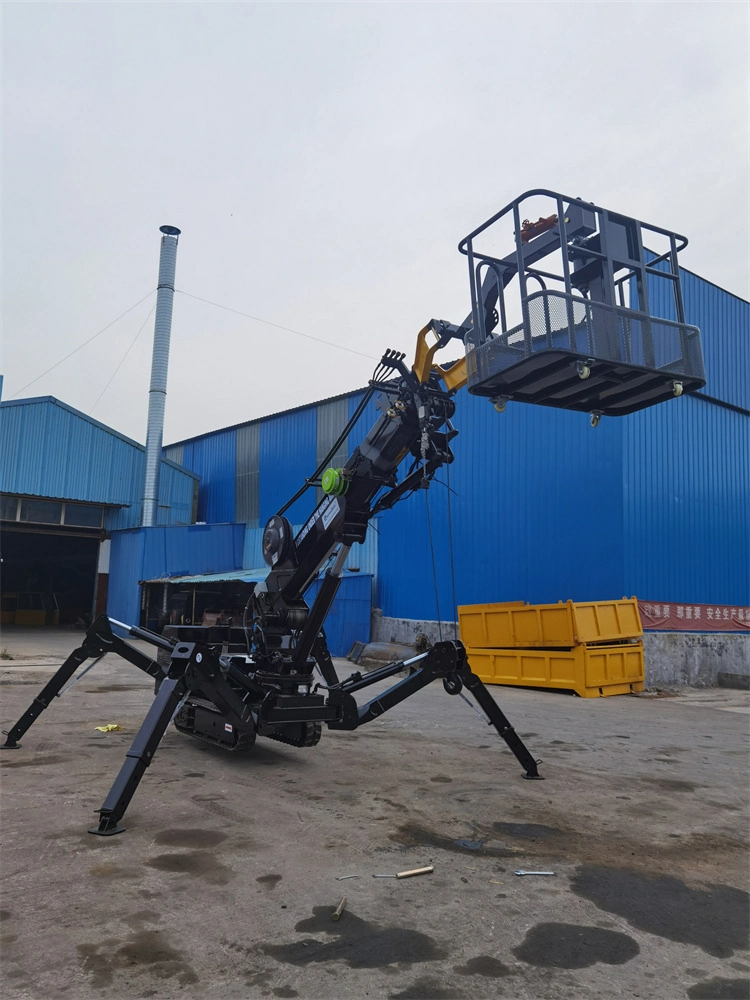

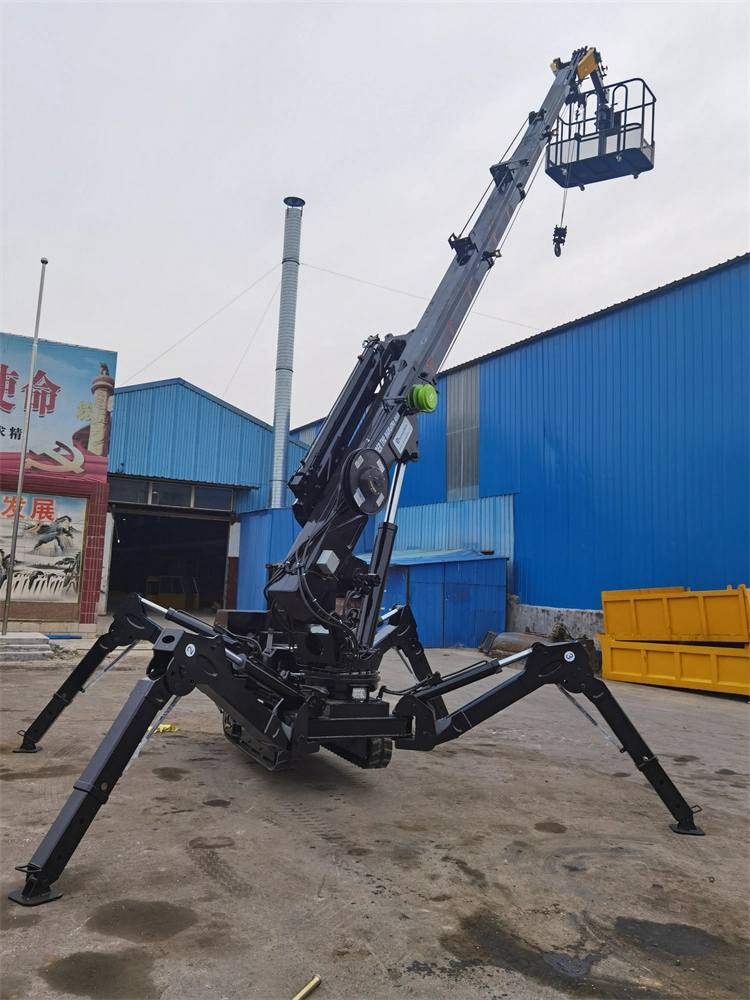

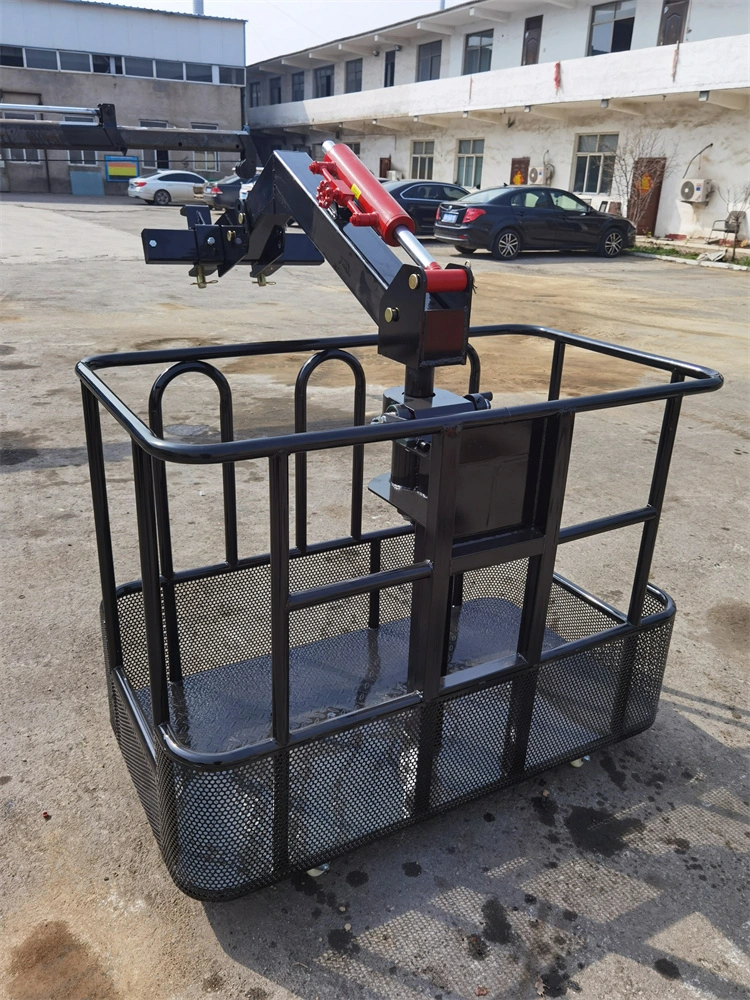

Basket Hook

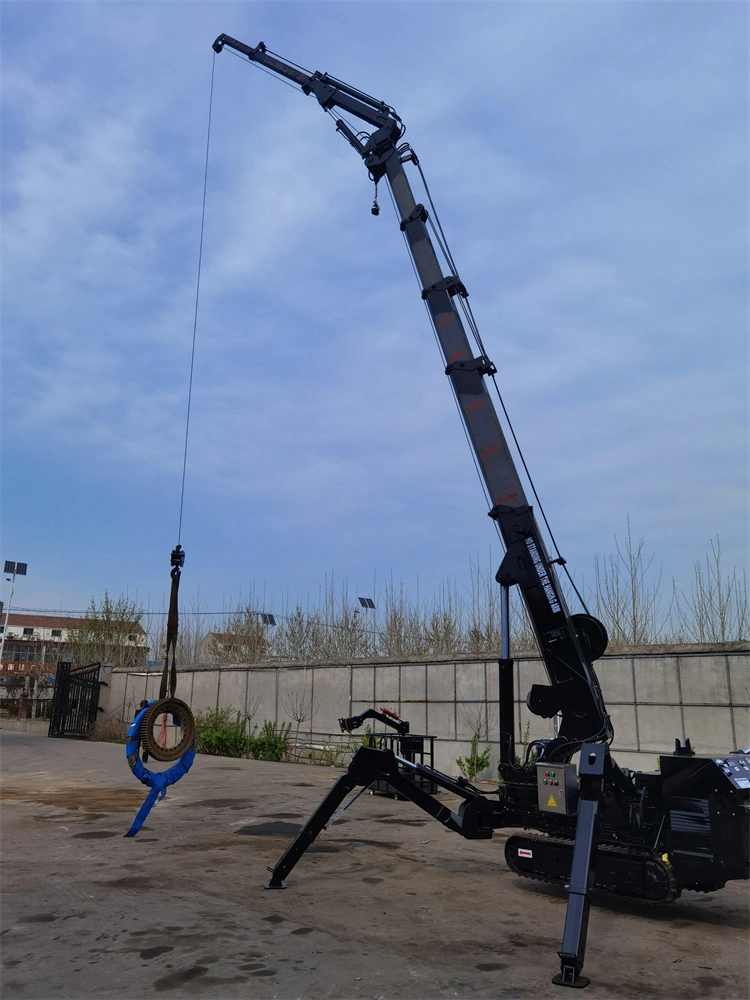

Spider crane weight testing
Certifications

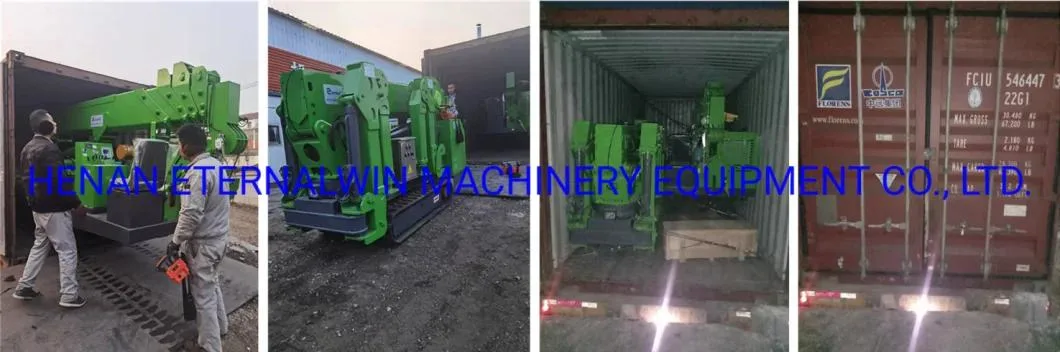

Packaging & Shipping
Company Profile
Custom Visiting
FAQ
1.What after-sale service do you provide?
We have professional sales team and technical team for all of our customers . We offer 24-hour service.
2. What terms of payment do you support?
We accept kinds of payment ,such as Western Union, Paypal, L/C, T/T ETC,or other payment for your convenient .
3. How to delivery the goods?
We usually ship goods by sea,which is cheaper than by air,or depends on your specific requirement.
4. What is your warranty about machine?
We offer one year guarantee generally , also our engineering team available for oversea service with crane installation, inspection and commissioning for your convenient.
5. What is your delivery terms ?
We usually use FOB,also use other terms like EXW, CIF, CFR ...for your convenient .
6.Why should I choose your products?
We can provide high quality products and perfect price for you.
