Product Details:

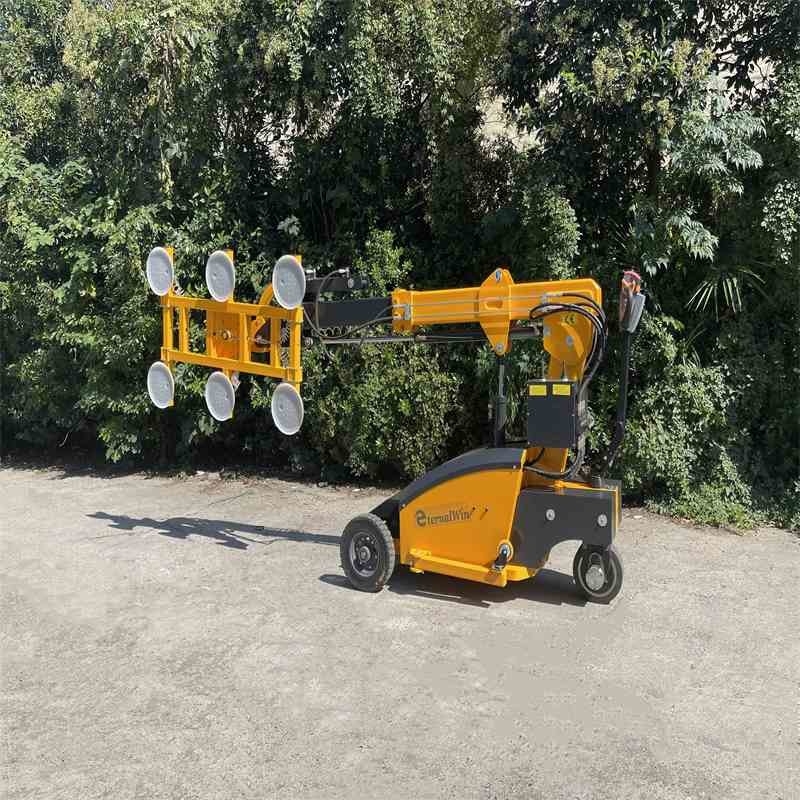

600kg Electric Rotation Sponge Sucker Marble Robot Vacuum Glass Lifter
Eternalwin Group is a leading supplier of vacuum lifting equipment, specializing in glass robot vacuum lifters, X type vacuum lifters, H type vacuum lifters, sheet vacuum lifters, pneumatic vacuum lifters, forklift type glass vacuum lifters, vacuum tube lifters and other vacuum lifting equipment.
Our EWR Series Vacuum Glass Lifter is designed to safely and efficiently transport and lift fragile materials such as glass, stone, and marble, making it ideal for a range of applications. With 360 degree rotation and a maximum lifting height of 5m, our Vacuum Glass Lifter is a reliable choice for industries including construction, automotive, aerospace, marine, industrial lifting, material handling, and personal use.
Features:
Our Vacuum Glass Lifter features dual-system control and is equipped with top-of-the-line components including an Anercan THOMAS vacuum pump, Italy METALROTA heavy type driving wheel, Swiss BUCHER power unit, intelligent maintenance-free battery and Japan PANASONIC digital display vacuum pressure switch and battery fuel gauge.
Our Vacuum Glass Lifter is also equipped with a vacuum pressure auto supply system to ensure the safety and reliability of the equipment.
Our Vacuum Glass Lifter is adjustable and can be customized to handle materials of various shapes and sizes, making it a versatile choice for glass vacuum transportation, vacuum glass moving, and vacuum glass lifting. Trust Eternalwin Group for your vacuum lifting equipment needs.
Technical Parameters:
|
Product Name
|
Robot Vacuum Lifter
|
|
Model
|
EWR200, EWR300, EWR400, EWR500, EWR600, EWR800
|
|
Maximum load weight
|
200-800KG
|
|
Hand rotation angle
|
360°
|
|
Maximum lift height
|
2750-5000mm
|
|
Operation method
|
Walking Type
|
|
Battery
|
2x12V/35A-2x12V/150A
|
|
Charger
|
24V/8A-24V/18A
|
|
Walking motor
|
24V/750W-24V/1500W
|
|
Lifting motor
|
24V/1500W-24V/2200W
|
|
Width of the car body
|
620mm, 840mm,1020mm
|
|
Length of the body
|
2350mm, 2660mm, 2800mm
|
|
Size of front tyre
|
300*80mm, 400*80mm,400*90mm
|
|
Driving wheel dimensions
|
210*70mm, 250*80mm, 300*100mm
|
|
Suction cup size
|
210mm, 250mm, 300mm
|
|
Suction cup quantity
|
4pcs, 6pcs,8pcs
|
|
Configuration
|
Manual rotation, manual side rotation,
wired remote control
|
|
Weight
|
1200-1950kg
|
FAQ:
Q1: What is the Robot Vacuum Glass Lifter?
A1: The Vacuum Glass Lifter is a high efficient lifting equipment, which is designed for lifting and moving glass and other sheet materials.
Q2: What do you accept trade terms?
A2: We can accept EXW, FOB, CIF, CFR, DAP, DDP.
Q3: How much does the Vacuum Glass Lifter cost?
A3: The price of the Vacuum Glass Lifter is Negotiable.
Q4: What is the packaging of the Vacuum Glass Lifter?
A4: The Vacuum Glass Lifter is usually packed with wooden packages or containers.
Q5: How long does it take to deliver the Vacuum Glass Lifter?
A5: It usually takes 15-20 Working Days to deliver the Vacuum Glass Lifter.
