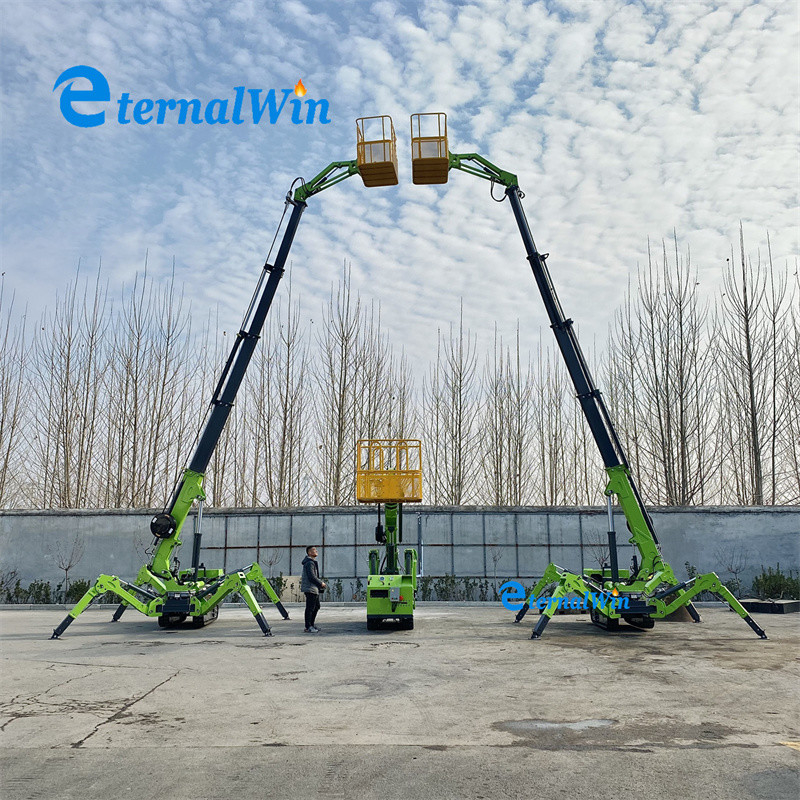

Diesel Engine Crawler Spider Aerial Working Platform 12m 14m
Advantages:
Our crawler hydraulic spider man lifter boast dual power supply for superior stability and anti-skid performance, with minimal demands on roadway conditions. Not only can they eliminate the need for hydraulic cranes to occupy transport trucks, but they can also operate independently on construction sites and navigate tight indoor spaces for efficient and hassle-free lifting operations. Our equipment streamlines construction processes and is optimized for convenience and feasibility.
Applications:
Our company, Henan Eternalwin Machinery Equipment Co., Ltd., offers versatile machinery that can adapt to any geographical environment and withstand complex weather conditions. Our machines are particularly suited for disaster relief efforts. Our equipment is widely utilized in electric power, railway, subway, highway, curtain wall, indoor steel structure construction, and repair work. It is ideal for industries requiring large-scale material storage and manufacturing that utilizes wireless remote control or fuselage switching modes for safe and reliable operation, resulting in faster speed and improved efficiency. Our equipment boasts of a miniature design, small size, and strong lifting capacity, providing a solution to the challenges of working in narrow spaces. Say goodbye to the days of relying solely on manpower for work in constricted spaces. Our machinery ensures not only improved working efficiency but also enhanced safety in the workplace.
| Max Working Height |
12m |
| Max Working Radius |
11m×0.26t |
| Overall Size |
4.5x0.9x1.8m |
| Weight |
3ton |
| Telescopic Device |
Boom Type |
5-section boom, pentagonal structure |
| Boom Telescopic Form |
Full cylinder boom |
| Up And Down Device |
Boom Angle/Time |
0-80°/13sec |
| Rotary device |
Rotation Angle/Time |
0-360°(continuous)/60sec |
| Basket |
Size(L*W) |
1.2x0.8m |
| Max Load Capacity |
240kg |
| Outriggers |
Outrigger Form |
Manual unscrewing + hydraulic expansion + automatic support (two sections) |
| Maximum Extension (mm) |
Length(4530mm),Front(3700mm),Back(4370mm) |
| Walking Device |
Walking Form |
Hydraulic motor drive, double speeds |
| Walking Speed |
0-2.5km/h |
| Climbing Ability |
20°(36%) |
| AC Electricity |
Voltage |
380V, 50Hz, 3Phases |
| Motor Power |
5.5kw |
| Diesel Engine |
Engine Model |
Changchai |
| Start Method |
Electric start |
| Start Performance |
一5°C to +40°C |
| Fuel/Tank Capacity |
Diesel/8L |
| Battery |
12v |
| Operation System |
Operation Form |
Manual push rod/ wireless remote control |
| Outrigger Operation Form |
Manual push rod hydraulic control |
| Boom/Walking Operation Form |
Manual push rod hydraulic control and wireless remote control |
Company Profits:
Established in 1998, Henan Eternalwin Machinery Equipment is a renowned one-stop solution supplier in the marine equipment industry. Our comprehensive range of superior quality marine equipments includes hydraulic winch, electric winch, marine ship crane, towing mooring hook, port crane, anchor rope, diesel engine marine winch, manual hand winch, and many more. We are proud to have obtained numerous certifications such as SGS, CE, BV, CCS, RMRS, etc. With our commitment to excellence in quality, competitive pricing, and exceptional customer service, our products have gained popularity across the globe, including in countries like USA, UK, UAE, Germany, France, Italy, Kenya, Uganda, Ghana, Bangladesh, India, Philippines, Malaysia, Russia, Pakistan, Brazil, and many other nations. Our team consists of highly capable technical engineers who specialize in OEM and ODM orders. If you have any innovative ideas or concepts for our products, do not hesitate to contact us anytime.
