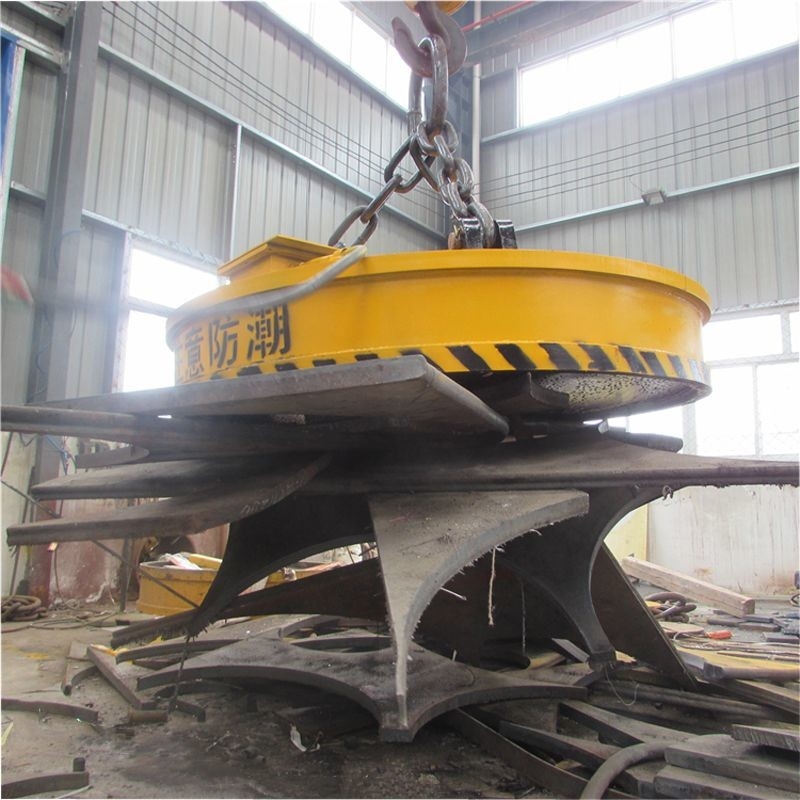

Large Circular Electric Electromagnetic Chuck Excavator Crane Lifting Magnet 700mm 800mm

Large Circular Lifting Electric Electromagnetic Chuck Excavator Lifting Magnet

Electromagnetic chuck is a kind of principle that uses electromagnetic principle to generate magnetic force by energizing the internal coil, and then through the magnetic conduction panel, the workpiece that is in contact with the surface of the panel is tightly sucked, and the principle of demagnetization and removal of the workpiece is achieved when the coil is powered off and the magnetic force disappears. And the production of a machine tool accessories.

Instructions for use

There are hoisting screw holes on both sides of the rectangular electromagnetic chuck, which can be hoisted by screwing in T-shaped screws during installation, fixed on the workbench with T-shaped blocks and screws, connected to the DC power supply and ground wire on the machine tool, and then put the suction cup on the plane Finish grinding once to ensure the parallelism of the upper plane to the bottom plane. When absorbing the workpiece, as long as two adjacent magnetic poles are overlapped, sufficient positioning suction force can be obtained, and the grinding process can be carried out. Through the button of the machine tool, the magnetization and demagnetization of the workpiece can be realized.

Structure form

The cross-sectional shape of the pole core and its distribution vary according to the workpiece. The common structural types of electromagnetic chucks are rectangular, circular, etc., and the rectangular magnetic poles are divided into vertical and horizontal arrangements. The vertical arrangement of rectangular magnetic poles is suitable for fixing larger processing workpieces; the horizontal arrangement of rectangular magnetic poles is suitable for fixing and processing smaller processing workpieces. The circular suction cup is suitable for fixing circular workpieces or workpieces with complex shapes. The main characteristics of ordinary electromagnetic chucks are: the magnetic force lines are evenly distributed on the surface of the disk, the electromagnetic attraction force cannot be concentrated, and the magnetic force per unit area is relatively small; the direction of the magnetic force is perpendicular to the surface of the chuck, and it is difficult to change. A magnetic force; the action point of the magnetic force on the workpiece is limited to the contact surface between the workpiece and the suction cup, and cannot be changed arbitrarily. Therefore, there are disadvantages such as low positioning accuracy, low clamping force, narrow application range, and low production efficiency during processing.

Product Parameter


Company Introduction




FAQ

1. What after-sale service do you provide?
We have professional sales team and technical team for all customer. We can serve 24 hours a day for you.
2. What payment methods do you support?
We have many kinds of payment for your reference ,such as Western Union, Paypal, L/C, T/T and so on.
3. How to delivery the goods?
We often shipment goods by sea,which is cheaper than by air. It depends on your specific requirement.
4. What is your warranty service about machine?
Our machine has one year warranty time, and our engineering team available for oversea service with crane installation, inspection and commissioning.
5. What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
