Mini Spider Crawler Crane 3T 5T 8T 12T
1.Spider Crawler Crane Introduction
Our factory is the manufacturer of mini crawler crane in China. Its main product is mini crane EW3.0,EW5.0, EW8.0,EW12.0
Spider crane is mainly controlled by remote control, diesel-electric dual-use, which brings great convenience to customers.
And spider crane is compact and can be used in small Spaces. Its boom length can reach up to 22 meters, which fully meets the requirements of high-altitude work and is suitable for various industrial construction.
2.Spider Crawler Crane Parameters
| Model |
EW 5.0 |
EW 8.0 |
| Specification |
5t |
8t |
| Maximum Working Radius |
14m×0.5t |
16m×1t |
| Maximum Above-ground Head |
16.8m |
17.8m |
| Maximum Underground Head |
18.5m |
20.5m |
| Winch Device |
Hook Speed |
12m/min (4 rope) |
10m/min (4 rope) |
| |
Rope diameter |
Φ11mm×80m |
Φ11mm×100m |
|
Telescopic system
|
Boom Type |
5 section boom, hexagonal structure |
5 section boom, hexagonal structure |
| |
Boom Length |
4.7m~16.5m |
4.7m~16.5m |
| |
Telescopic Length/Time |
12.3m/54sec |
12.3m/54sec |
| Up and Downs |
Boom Angle/Time |
0-75°/ 13sec |
0-75°/ 25sec |
| Slew System |
Slew Angle/Time |
360° continuous/38sec |
360° continuous/38sec |
|
Outrigger
|
Outrigger Active Form
|
Manual rotation, oil pressure expansion, automatic support |
Manual rotation, oil pressure expansion, automatic support |
| |
Maximum Extended Dimensions |
5170 x 5807 x 5423mm |
5170 x 5807 x 5423mm |
|
Traction system
|
Walking Way |
Hydraulic motor |
Hydraulic motor |
| |
Walking Speed |
0-2.5km/h |
0-2.5km/h |
| |
Traction device |
Crawler synthetic rubber |
Crawler synthetic rubber |
| |
Grade Ability |
20°(36%) |
20°(36%) |
| |
Ground Pressure |
41.3kPa |
49kPa |
| Engine |
Fuel tank capacity |
48L |
48L |
| Electric Motor |
Stating Performance |
-5°C-40°C |
-5°C-40°C |
| |
Battery Capacity |
12V 45AH |
12V 45AH |
| Dimension |
Length x Width x Height |
4750× 1360× 2200mm |
5000× 1600× 2200mm |
| Weight |
Vehicle Weight |
6500kg |
7500kg |

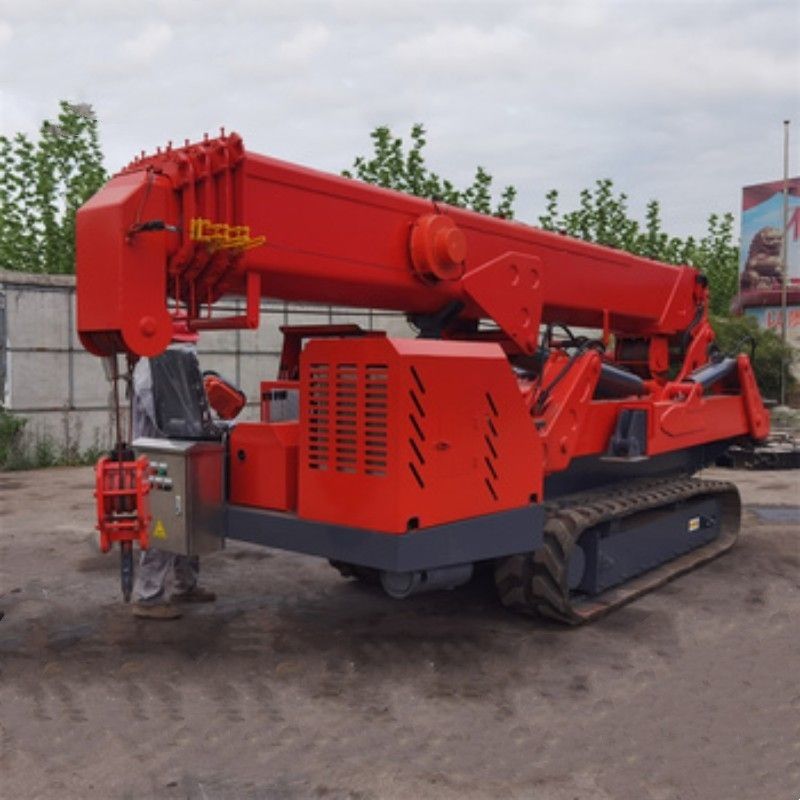

3.Spider Crawler Crane Photos
4.Company Pofile
Henan Eternalwin Machinery Equipment Co., ltd established in 1998, located in crane hometown, which integrates the R&D, manufacture, sales, installation and service of all kinds of lifting equipments. Our products have been famous all over the world, such as overhead crane, gantry crane, portable gantry crane, spider crane, crawler crane, electric winch, hydraulic winch, vacuum lifting equipment, marine ship crane, port deck crane, forklift, lift platform, boom lift, truck crane, mooring towing hook, grab, electric magnet, jib crane, electric hoist, grab, aerial working platform, etc. Quality is our culture, we trust our products will give you an edge over your competitors. We are sincerely to build long-term win-win business relationship with all the customers.
Welcome to contact us for more details!
